Dryers and filtrationCZ-MXW-0875CE · ISO 9001

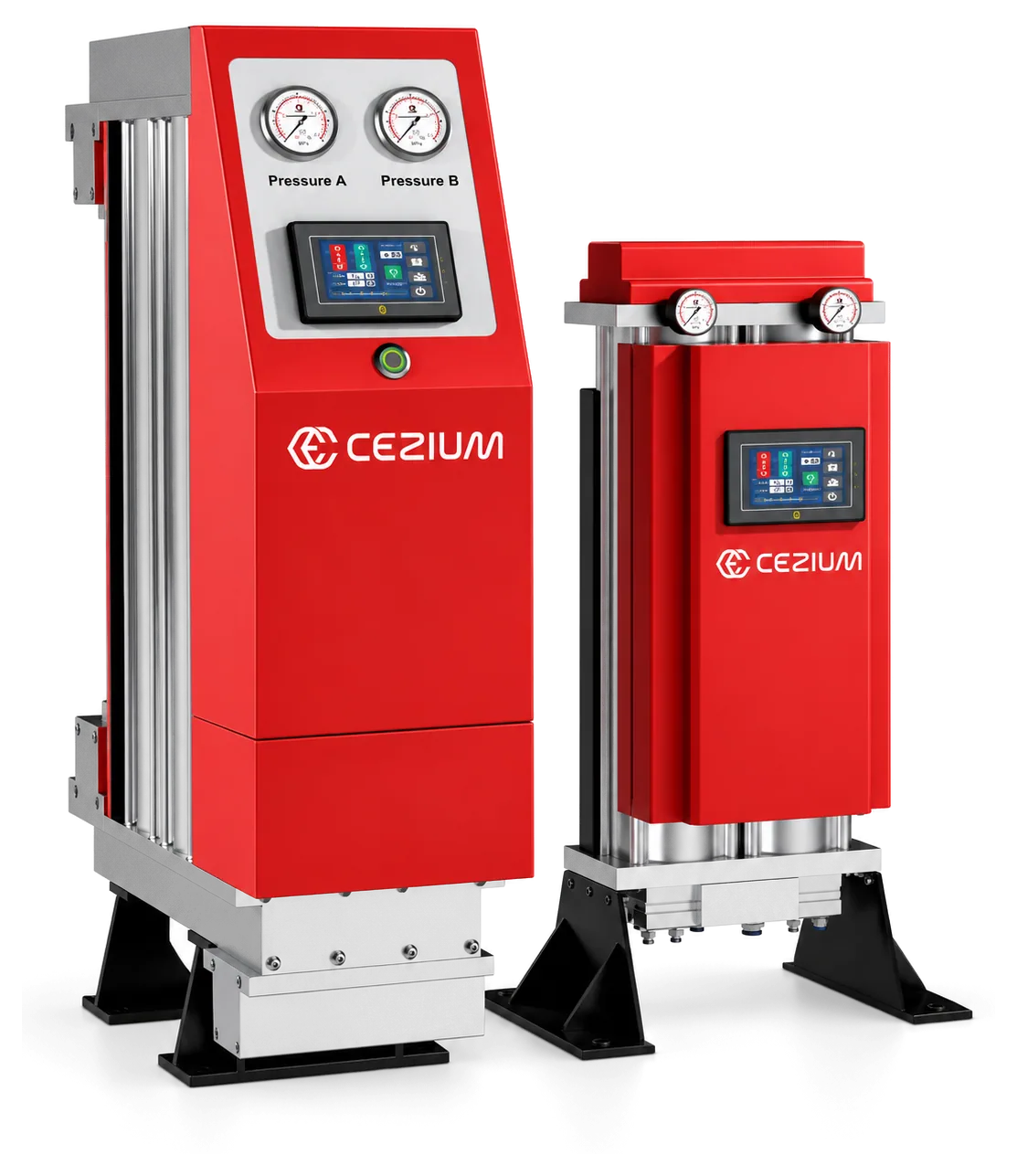

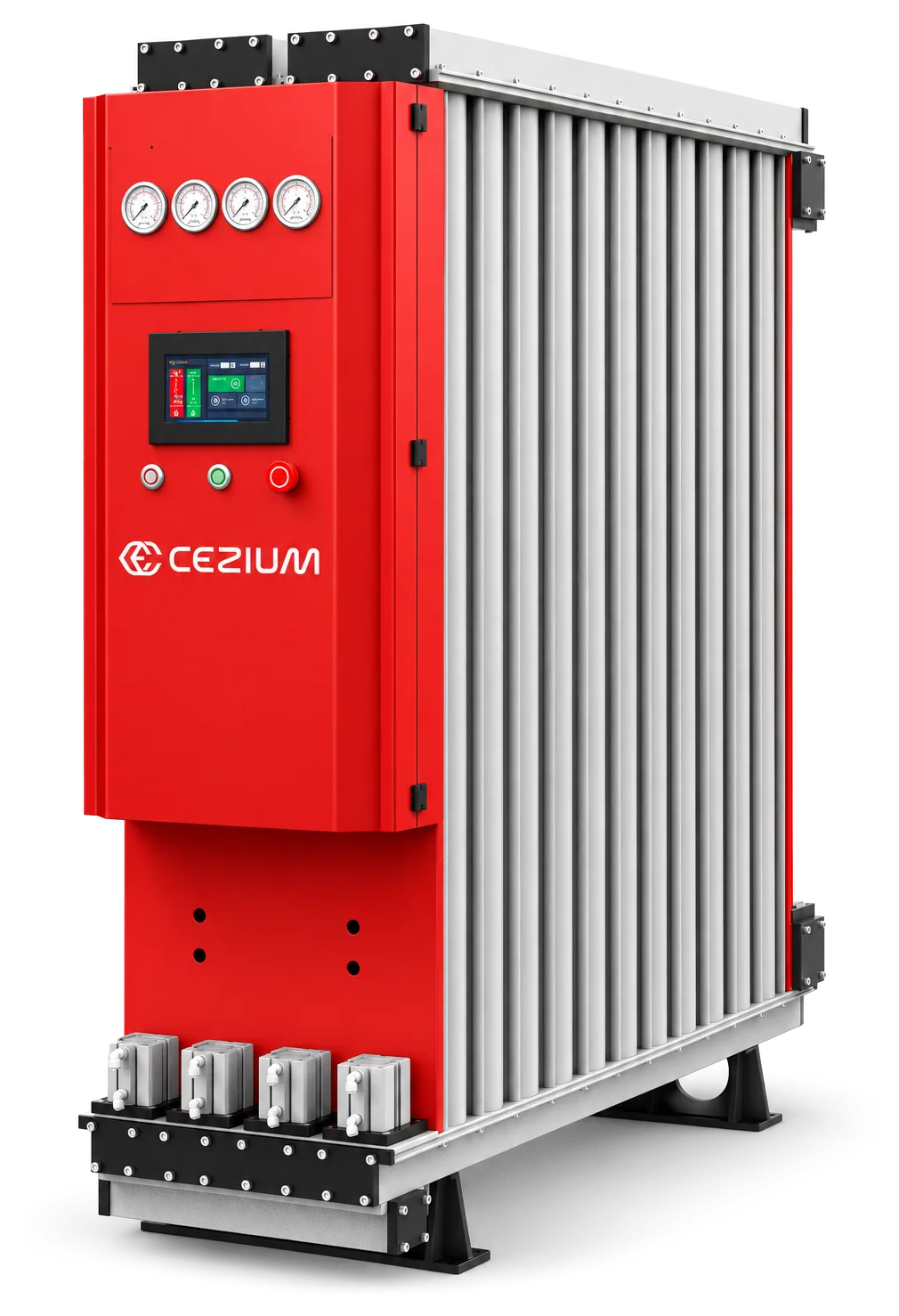

Heatless adsorption dryer
Heatless adsorption dryer: up to 8.75 m³/min, 4.5 to 10 bar, dew point −40 °C.
On request
Quoted within one working day on your flow and pressure.
8,75 m³/min
Flow
4.5-10 bar
Pressure
−40 °C
Dew point
Specifications
| Reference | CZ-MXW-0875 |
| Flow | 8,75 m³/min |
| Available pressures | 4.5-10 bar |
| Air outlet | G1-1/2" |
| Dew point | −40 °C |
| Dimensions (L × W × H) | 865 × 260 × 1750 mm |
| Weight | 216 kg |
| Conformity | CE · ISO 9001 |
3-year warranty, 5 under supervision
Two extra years for as long as the machine stays supervised by SEENTINEL; the warranty reverts to three years if supervision ends. Parts available for 10 years, shipped within 24 to 48 hours in France.
Quote this machine →Why this machine
Dew point -40 °C
Class 2 for water: the network can run outdoors, the air will not condense.
Purge ≤ 6%
The share of the flow devoted to regeneration. It is the main expense of this type of dryer, and it should be compared before purchase.
Replaceable modules
Independent sealed cartridges: a module is changed without removing the whole column or emptying the desiccant.
