Portable diesel

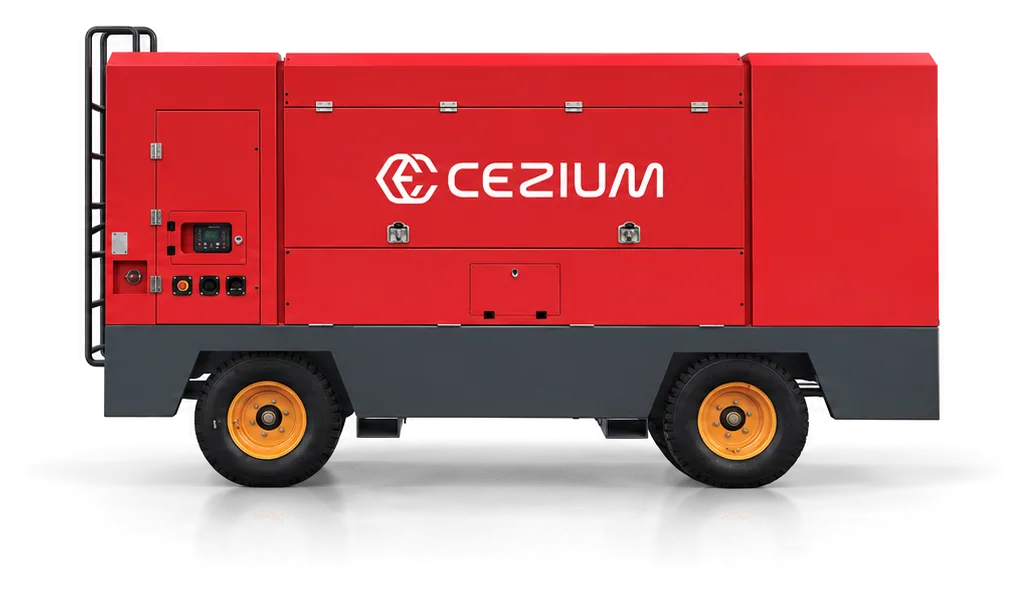

Diesel screw compressor on a towable chassis, from 37 to 429 kW, 7 to 30 bar: compressed air for the building site, with no electricity.
46 models in the catalogue, flow 4.5 - 40 m³/min, pressure 7 - 30 bar, noise level 75 - 88 dB(A).
How it works ↓
What is a portable diesel compressor?
A screw air-end driven by a diesel engine, on a towable chassis: it produces its air where there is no electricity, or not enough. It is the machine for building sites and hire fleets.
Swipe to see the whole drawing
Made for
- Construction, civil engineering, road works
- Sandblasting, drilling, rock breaking, mining
- Hire and temporary sites
Not made for
- A fixed installation connected to the gridFixed-speed screw
Two series side by side: CZ-SLTDP and CZ-OPM. Compare flow, footprint and weight row by row; the quote prices both.
| Reference | kW | m³/min | Pressures | dB(A) | Outlet | L × W × H (mm) | Weight |
|---|---|---|---|---|---|---|---|
| CZ-SLTDP-5/7 | 37 | 5 | 7 | 75 | 3193 × 1446 × 1428 | 960 kg | |
| CZ-OPM-37-8 | 37 | 4.5 | 8 | 75 | G1 (×2) | 2300 × 1600 × 1600 | 950 kg |
| CZ-OPM-55-8 | 55 | 6 | 8 | 80 | G1 (×2) | 2300 × 1400 × 2000 | 1,100 kg |
| CZ-OPM-55-10 | 55 | 5 | 10 | 80 | G1 (×2) | 2300 × 1400 × 2000 | 1,100 kg |
| CZ-SLTDP-7.5/8 | 60 | 7.5 | 8 | 80 | 3900 × 1600 × 1930 | 1,500 kg | |
| CZ-SLTDP-10/8 | 74 | 10 | 8 | 80 | 3900 × 1600 × 1930 | 1,600 kg | |
| CZ-OPM-93-8 | 93 | 9.5 | 8 | 82 | G1 (×2) | 2450 × 1900 × 2000 | 1,900 kg |
| CZ-OPM-93-10 | 93 | 8.5 | 10 | 82 | G1 (×2) | 2450 × 1900 × 2000 | 1,900 kg |
| CZ-OPM-93-12 | 93 | 8 | 12 | 82 | G1 (×2) | 2450 × 1900 × 2000 | 1,900 kg |
| CZ-SLTDP-13/8 | 97 | 13 | 8 | 80 | 4230 × 1860 × 1870 | 1,860 kg | |
| CZ-OPM-97-8 | 97 | 10 | 8 | 82 | G1 (×2) | 2450 × 1900 × 2000 | 1,900 kg |
| CZ-OPM-97-10 | 97 | 9 | 10 | 82 | G1 (×2) | 2450 × 1900 × 2000 | 1,900 kg |
| CZ-OPM-110-8 | 110 | 13 | 8 | 84 | G1 (×2) | 3000 × 2100 × 2100 | 2,100 kg |
| CZ-OPM-110-10 | 110 | 12 | 10 | 84 | G1 (×2) | 3000 × 2100 × 2100 | 2,100 kg |
| CZ-OPM-132-8 | 132 | 18 | 8 | 84 | G1 (×2) | 3200 × 2100 × 2200 | 2,400 kg |
| CZ-OPM-132-12 | 132 | 16 | 12 | 84 | G1 (×2) | 3200 × 2100 × 2200 | 2,400 kg |
| CZ-OPM-132-15 | 132 | 15 | 15 | 84 | G1 (×2) | 3200 × 2100 × 2200 | 2,400 kg |
| CZ-OPM-140-8 | 140 | 18 | 8 | 84 | G1 1/2 + G1 | 3200 × 2100 × 2200 | 2,400 kg |
| CZ-OPM-140-12 | 140 | 17 | 12 | 84 | G1 1/2 + G1 | 3200 × 2100 × 2200 | 2,400 kg |
| CZ-OPM-140-15 | 140 | 16 | 15 | 84 | G1 1/2 + G1 | 3200 × 2100 × 2200 | 2,400 kg |
| CZ-SLTDP-15/13 | 142 | 15 | 13 | 85 | 4350 × 1960 × 1950 | 2,020 kg | |
| CZ-SLTDP-17/8 | 142 | 17 | 8 | 85 | 4350 × 1960 × 1950 | 2,020 kg | |
| CZ-OPM-153-8/10 | 153 | 23 | 8/10 | 84 | G1 1/2 + G1 | 3200 × 2100 × 2200 | 2,400 kg |
| CZ-OPM-162-15 | 162 | 18 | 15 | 84 | G1 1/2 + G1 | 3400 × 2200 × 2300 | 2,800 kg |
| CZ-OPM-162-17 | 162 | 17 | 17 | 84 | G1 1/2 + G1 | 3400 × 2200 × 2300 | 2,800 kg |
| CZ-SLTDP-18/17 | 178 | 18 | 17 | 88 | 3800 × 1900 × 1900 | 2,910 kg | |
| CZ-SLTDP-21/10 | 178 | 21 | 10 | 88 | 4580 × 1950 × 2500 | 2,840 kg | |
| CZ-OPM-194-8 | 194 | 27 | 8 | 85 | G1 1/2 + G1 | 3500 × 1900 × 2400 | 3,500 kg |
| CZ-OPM-194-13 | 194 | 25 | 13 | 85 | G1 1/2 + G1 | 3500 × 1900 × 2400 | 3,500 kg |
| CZ-OPM-194-17 | 194 | 23 | 17 | 85 | G1 1/2 + G1 | 3500 × 1900 × 2400 | 3,500 kg |
| CZ-OPM-194-22 | 194 | 20 | 22 | 85 | G1 1/2 + G1 | 3500 × 1900 × 2400 | 3,500 kg |
| CZ-OPM-228-15 | 228 | 26 | 15 | 85 | G2 + G1 | 3600 × 2100 × 2900 | 4,100 kg |
| CZ-OPM-228-20 | 228 | 22 | 20 | 85 | G2 + G1 | 3600 × 2100 × 2900 | 4,100 kg |
| CZ-SLTDP-24/22 | 242 | 24 | 22 | 88 | 5600 × 2100 × 2550 | 5,610 kg | |
| CZ-SLTDP-25/17 | 242 | 25 | 17 | 88 | 5600 × 2100 × 2550 | 5,610 kg | |
| CZ-SLTDP-33/10 | 242 | 33 | 10 | 88 | 4500 × 2100 × 2550 | 5,150 kg | |
| CZ-OPM-264-23 | 264 | 28 | 23 | 85 | G2 + G1 | 3600 × 2100 × 2900 | 4,200 kg |
| CZ-OPM-264-25 | 264 | 27 | 25 | 85 | G2 + G1 | 3600 × 2100 × 2900 | 4,200 kg |
| CZ-OPM-294-23 | 294 | 30 | 23 | 85 | G2 + G1 | 3600 × 2100 × 2900 | 4,200 kg |
| CZ-OPM-294-25 | 294 | 29 | 25 | 85 | G2 + G1 | 3600 × 2100 × 2900 | 4,200 kg |
| CZ-SLTDP-29/25 | 295 | 29 | 25 | 88 | 5650 × 2100 × 3000 | 5,080 kg | |
| CZ-OPM-315-15 | 315 | 35 | 15 | 85 | G2 + G1 | 3800 × 2300 × 2900 | 4,800 kg |
| CZ-OPM-410-20 | 410 | 40 | 20 | 88 | G1 + G1 1/2 + G2 | 4000 × 2400 × 2600 | 6,500 kg |
| CZ-OPM-410-25 | 410 | 38 | 25 | 88 | G1 + G1 1/2 + G2 | 4000 × 2400 × 2600 | 6,500 kg |
| CZ-OPM-410-30 | 410 | 36 | 30 | 88 | G1 + G1 1/2 + G2 | 4000 × 2400 × 2600 | 6,500 kg |
| CZ-SLTDP-35/30 | 429 | 35 | 30 | 88 | 7000 × 2100 × 3000 | 6,000 kg |
Flows, pressures, noise levels and dimensions recorded model by model on the catalogue sheets.
The towable site compressor, diesel engine from 37 to 429 kW, from 7 to 30 bar: where there is no electricity, or not enough. Breakers, sandblasting, drilling, rental.
In a fixed installation with a power supply, an electric screw costs less per hour; diesel is justified by mobility, not by efficiency.
A conventional screw air-end, but driven by a diesel engine instead of an electric motor, all mounted on a towable chassis. The machine produces compressed air anywhere, with no connection to the electricity grid.
The diesel engine drives the screw air-end directly; fuel, cooling and controls are integrated into the chassis. The unit is towed to the point of use and runs fully autonomously.
Construction sites and sites without electricity: building, civil engineering, mining, drilling, sandblasting, pneumatic rock breaking, road works. Wherever mobile, self-contained compressed air is needed.
No power socket
The screw air-end is driven by a diesel engine: compressed air on a construction site, in a quarry or at a remote site, with no grid connection.
From 4.5 to 40 m³/min, up to 30 bar
From 7 bar for site tools to 30 bar for drilling.
Diesel engine according to size
Diesel engine from 37 to 429 kW depending on size; the machine starts and runs with no electrical connection.
Towable, everything integrated
Towable chassis with an integrated fuel tank: the machine arrives on site ready to run.
