Lubricated compressorCZ-SDF1025K-30-BCE · PED · ISO 9001

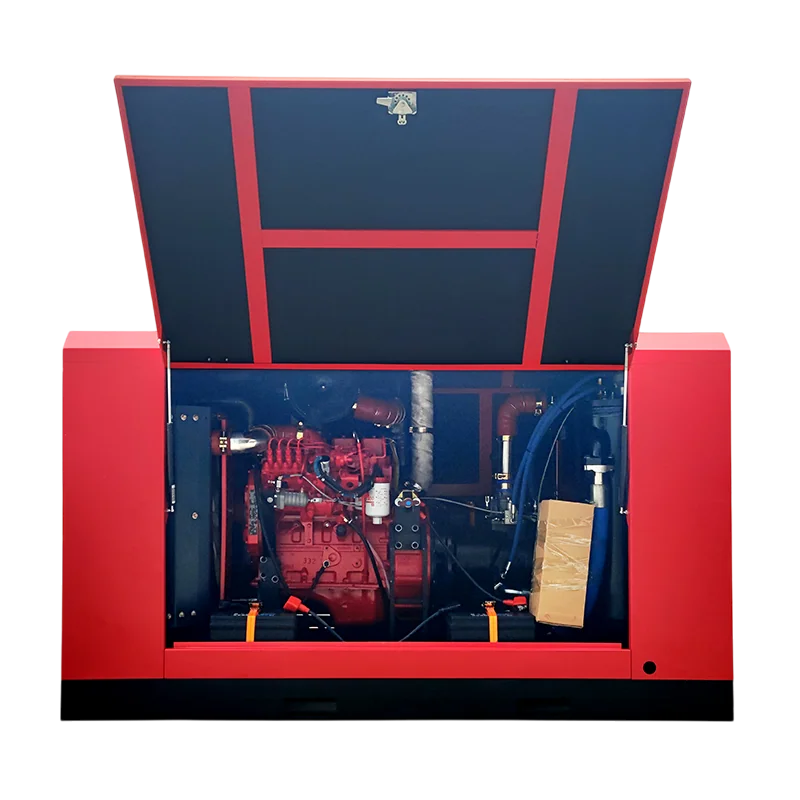

447 kW stationary diesel compressor
447 kW stationary diesel compressor: 447 kW, up to 35 m³/min, 30 bar.
On request
Quoted within one working day on your flow and pressure.
447 kW
Power
35 m³/min
Flow
30 bar
Pressure
Specifications
| Reference | CZ-SDF1025K-30-B |
| Motor power | 447 kW |
| Flow | 35 m³/min |
| Available pressures | 30 bar |
| Dimensions (L × W × H) | 4000 × 1950 × 2100 mm |
| Weight | 7 000 kg |
| Energy at 4,000 h/yr, full load | ≈ 1 788 000 kWh |
| Conformity | CE · PED · ISO 9001 |
What goes with it
Sized on this machine's flow. Air quality is decided here, not in the compressor.
Dryer 35 m³/minRefrigerated dryer (air) · CZ-DM300NF
Filtration 40.2 m³/minFilter elements · CZ-ELEM-400
Air receiver 8 000 LVertical tank · CZ-TANK-V80003-year warranty, 5 under supervision
Two extra years for as long as the machine stays supervised by SEENTINEL; the warranty reverts to three years if supervision ends. Parts available for 10 years, shipped within 24 to 48 hours in France.
Quote this machine →Why this machine
Independent of the grid
Air production with no electrical supply: an off-grid site, or a backup that does not depend on the power supply.
From 25 to 37 m³/min
From 24 to 35 bar depending on the model, for the flow and pressure needs of a heavy installation.
Oil-injected screw air-end
A diesel engine drives an oil-injected screw air-end, in a permanently installed unit.
