Oil-free compressorCZ-SLTOF-160VDCE · PED · ISO 8573-1 Cl. 0 · FDA · ISO 9001

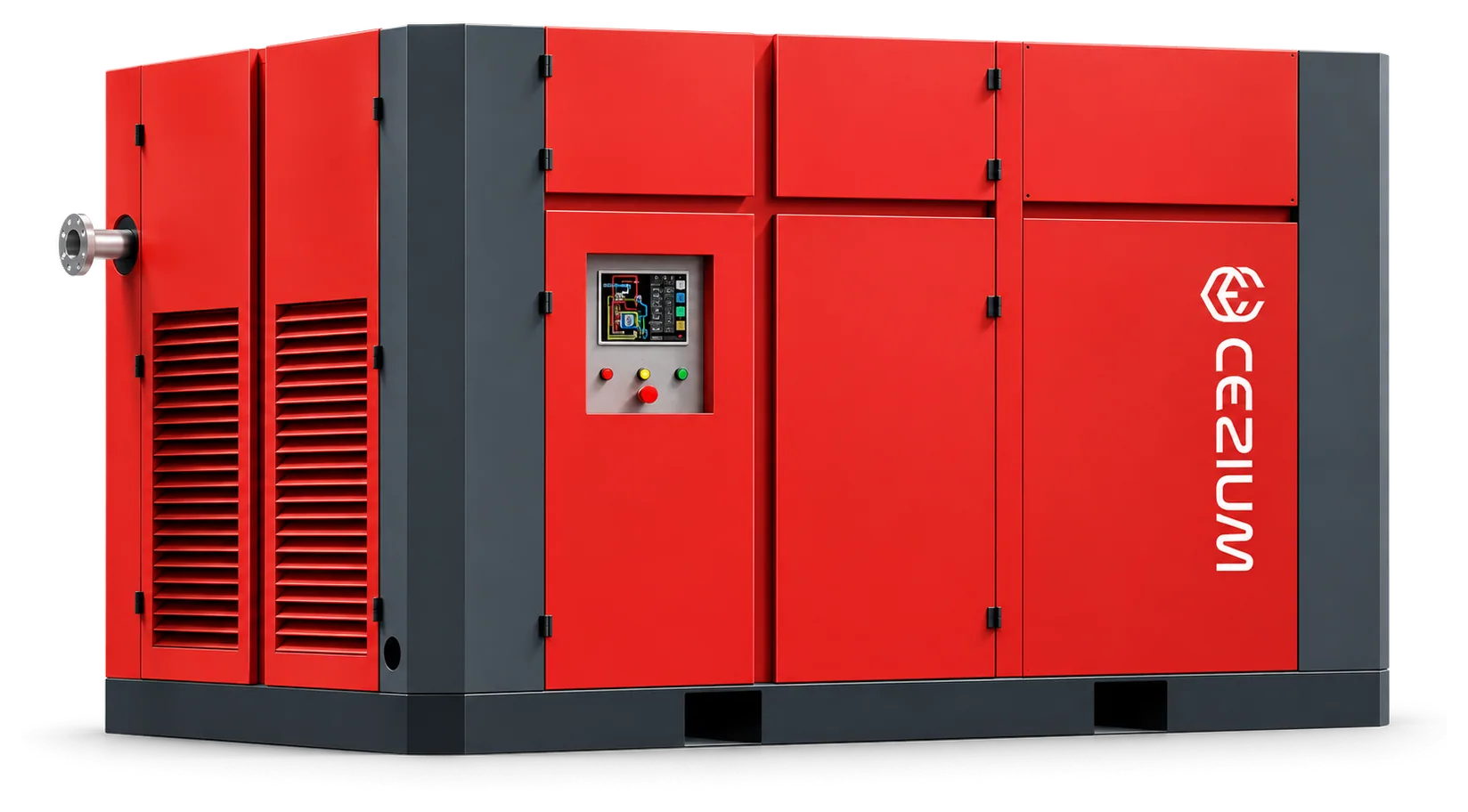

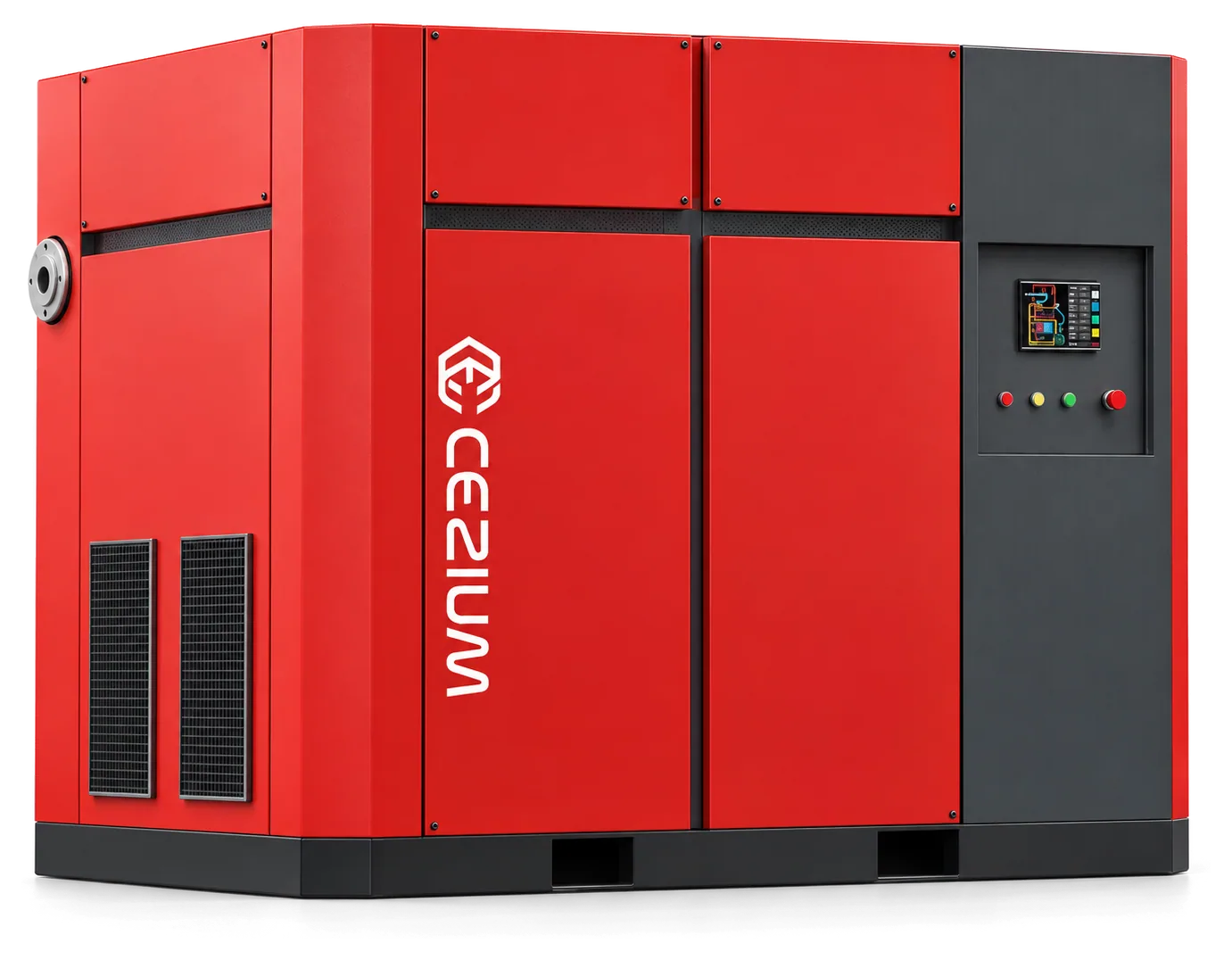

160 kW oil-free dry screw compressor
160 kW oil-free dry screw compressor: 160 kW (215 HP), up to 28.5 m³/min, 7 to 10 bar, 73 dB(A).
On request
Quoted within one working day on your flow and pressure.
160 kW
Power (215 HP)
26,30 m³/min
Flow at 8 bar
7 / 8 / 10 bar
Pressure
73 dB(A)
Noise level
Specifications
| Reference | CZ-SLTOF-160VD |
| Motor power | 160 kW / 215 HP |
| Flow at 7 bar | 16,90 - 28,50 m³/min |
| Flow at 8 bar | 15,60 - 26,30 m³/min |
| Flow at 10 bar | 14,10 - 23,80 m³/min |
| Available pressures | 7 / 8 / 10 bar |
| Noise level | 73 dB(A) |
| Air outlet | DN65 |
| Starting | VFD |
| Drive | Direct |
| Voltage | 400V/ |
| Dimensions (L × W × H) | 3000 × 1990 × 2180 mm |
| Weight | 3 300 kg |
| Energy at 4,000 h/yr, full load | ≈ 640 000 kWh |
| Conformity | CE · PED · ISO 8573-1 Cl. 0 · FDA · ISO 9001 |
What goes with it
Sized on this machine's flow. Air quality is decided here, not in the compressor.
Dryer 28.53 m³/minHeatless adsorption dryer · CZ-MXW-2853
Filtration 30.5 m³/minFilter elements · CZ-ELEM-300
Air receiver 6 000 LVertical tank · CZ-TANK-V60003-year warranty, 5 under supervision
Two extra years for as long as the machine stays supervised by SEENTINEL; the warranty reverts to three years if supervision ends. Parts available for 10 years, shipped within 24 to 48 hours in France.
Quote this machine →Why this machine
Class 0, no oil in the chamber
No oil in the compression chamber: Class 0 under ISO 8573-1, the strictest in the standard.
Nothing rubs in the chamber
Coated stainless steel rotors, synchronised by timing gears, non-contact labyrinth seals.
Cooled two-stage design
Two-stage compression with an intercooler, to make up for the absence of oil cooling and maintain efficiency.
