PM VSD rotary vane

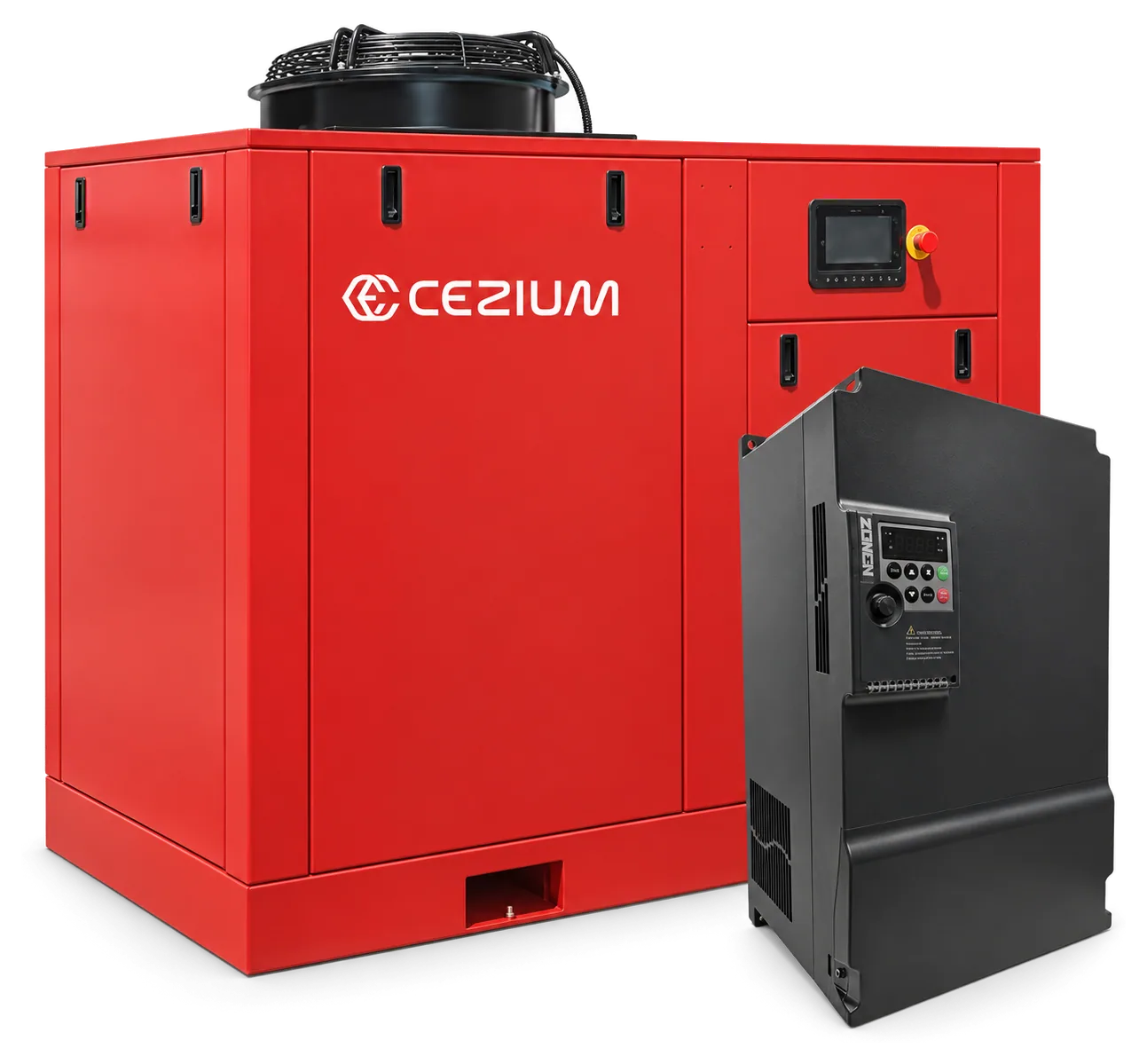

Permanent-magnet rotary vane compressor + drive - maximum savings under variable load, stable pressure ± 0.1 bar and vane longevity.
8 models in the catalogue, flow 1.39 - 8.25 m³/min, pressure 8 - 13 bar, noise level 70 - 78 dB(A).
How it works ↓
What is a permanent magnet rotary vane compressor?
Vanes, a permanent magnet motor and a drive: the most efficient version of the family. The magnet motor keeps its efficiency at low speed, where a conventional motor loses it, and pressure stays stable within ± 0.1 bar.
Swipe to see the whole drawing
Made for
- Demand that varies strongly during the day
- Print shops, laboratories, multi-station workshops
- The quietness of vanes and the savings of a drive
Not made for
- A flat load: the extra sophistication brings nothingStandard rotary vane
| Reference | kW | HP | Flow by pressure (m³/min) | dB(A) | Outlet | L × W × H (mm) | Weight |
|---|---|---|---|---|---|---|---|
| CZ-VANE-PB75 | 7.5 | 10 | 8 bar1.3910 bar1.1513 bar0.95 | 70 | DN20 | ||
| CZ-VANE-PB11 | 11 | 15 | 8 bar1.9610 bar1.7113 bar1.33 | 70 | DN20 | ||
| CZ-VANE-PB15 | 15 | 20 | 8 bar2.710 bar2.213 bar1.8 | 72 | DN25 | ||
| CZ-VANE-PB18.5 | 18.5 | 25 | 8 bar3.210 bar2.613 bar2.2 | 72 | DN25 | 1510 × 800 × 1200 | 540 kg |
| CZ-VANE-PB22 | 22 | 30 | 8 bar3.710 bar3.213 bar2.5 | 72 | DN25 | ||
| CZ-VANE-PB30 | 30 | 40 | 8 bar5.610 bar4.6513 bar3.66 | 74 | DN50 | ||
| CZ-VANE-PB37 | 37 | 50 | 8 bar6.810 bar5.6613 bar4.7 | 78 | DN50 | 1830 × 960 × 1670 | 900 kg |
| CZ-VANE-PB45 | 45 | 60 | 8 bar8.2510 bar713 bar5.83 | 78 | DN50 | 1830 × 960 × 1670 | 975 kg |
Flows, pressures, noise levels and dimensions recorded model by model on the catalogue sheets. Flows given at 8 bar.
Rotary vane, permanent-magnet motor and drive: the most efficient version of the family, from 7.5 to 45 kW, for a demand that varies strongly through the day. The permanent-magnet motor keeps its efficiency at low speed, where a conventional motor loses it.
On a flat load, this sophistication brings nothing: the base range is enough.
Here the vane air-end (off-centre rotor and sliding vanes) is driven by a permanent magnet motor controlled by a variable frequency drive (PM-VSD). Speed adapts continuously to air demand.
This combines the strengths of rotary vanes (quietness, intermittent duty accepted) with those of the drive (energy savings under variable load, stable pressure, soft start).
Quiet sites with fluctuating demand: the winning combination when you want both the acoustic comfort of rotary vanes and the savings of variable flow. Print shops, laboratories, multi-station workshops with irregular loads.
Savings under variable load
The drive adapts the speed to actual demand: marked energy savings as soon as consumption fluctuates, with no off-load cycles.
Permanent magnet motor
High efficiency maintained even at low speed, IP55 class F, direct coupling to the vane air-end.
Rotary vane quietness
The low noise level of rotary vane technology, reduced further at low speed thanks to the drive.
Soft start
The drive ramps up speed smoothly, with no current peak on the electrical supply and no shock to the vane air-end.
