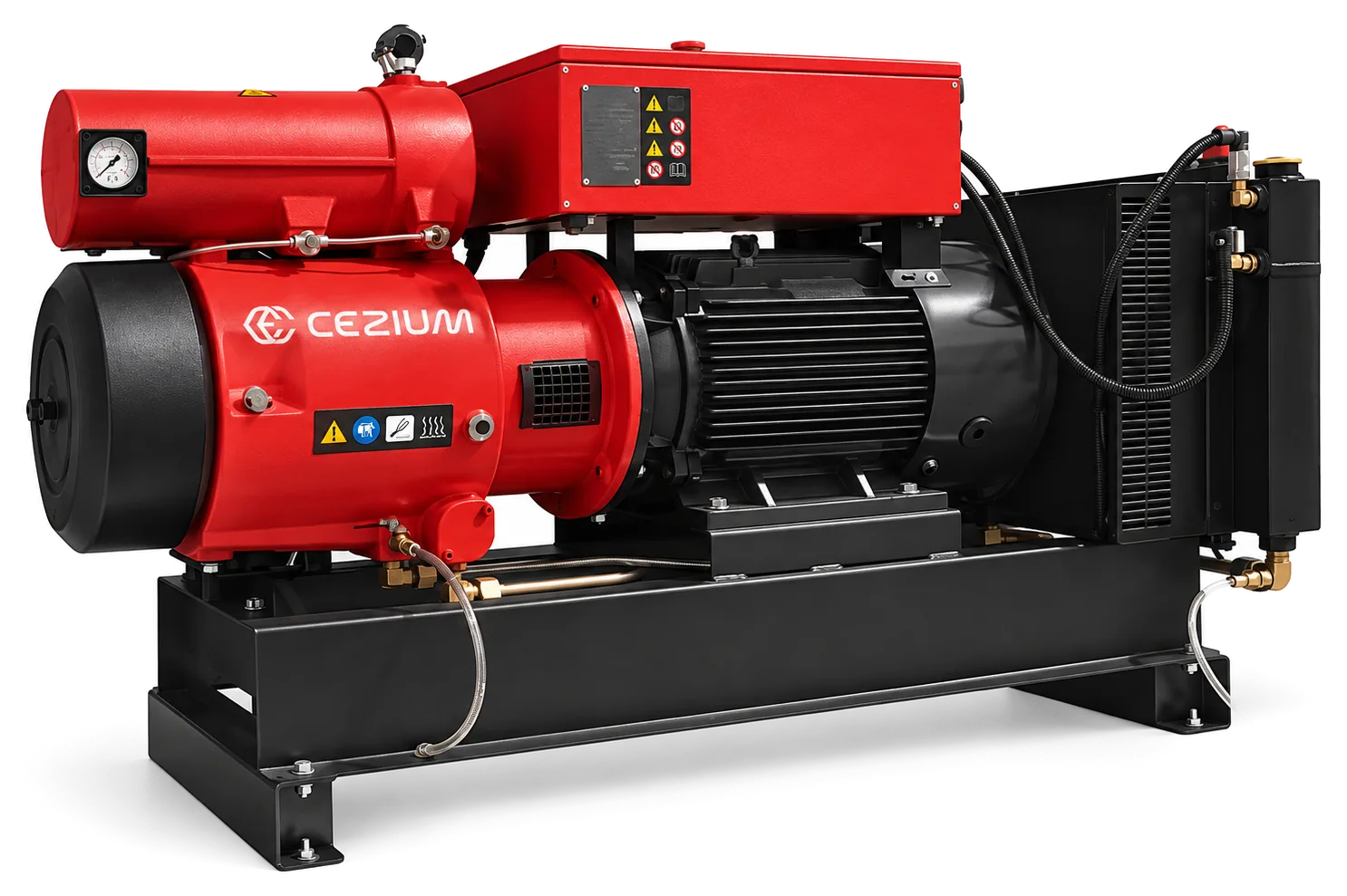

Standard rotary vane
Standard fixed-speed rotary vane compressor: single low-speed direct-drive rotor, vanes that keep their seal as they wear, intermittent duty accepted. 4 to 55 kW, the core vane range for steady load.
11 models in the catalogue, flow 0.68 - 11 m³/min, pressure 8 - 13 bar, noise level 72 - 82 dB(A).
How it works ↓
What is a rotary vane compressor?
A single rotor turns slowly in an eccentric stator; vanes slide in its slots and form the compression chambers. As they wear, they slide out towards the stator and keep the seal: efficiency holds over the hours. Few moving parts, and repeated starts are accepted.
Swipe to see the whole drawing
Made for
- Workshops and SMEs, engineering, metalworking, food
- Intermittent running, with frequent stops
- Long life and simple maintenance
Not made for
- Demand that varies a lotVSD rotary vane
- A room where noise mattersSuper Silent rotary vane
| Reference | kW | HP | Flow by pressure (m³/min) | dB(A) | Outlet | L × W × H (mm) | Weight |
|---|---|---|---|---|---|---|---|
| CZ-VANE-A4 | 4 | 6 | 8 bar0.6810 bar0.5313 bar0.48 | 72 | DN15 | 1051 × 416 × 706 | 115 kg |
| CZ-VANE-A5.5 | 5.5 | 8 | 8 bar0.910 bar0.7713 bar0.56 | 72 | DN15 | 1021 × 435 × 721 | 125 kg |
| CZ-VANE-A7.5 | 7.5 | 10 | 8 bar1.3910 bar1.1513 bar0.95 | 76 | DN20 | 1202 × 513 × 827 | 210 kg |
| CZ-VANE-A11 | 11 | 15 | 8 bar1.9610 bar1.7113 bar1.33 | 76 | DN20 | 1281 × 538 × 850 | 250 kg |
| CZ-VANE-A15 | 15 | 20 | 8 bar2.710 bar2.213 bar1.8 | 79 | DN25 | 1472 × 620 × 956 | 370 kg |
| CZ-VANE-A18.5 | 18.5 | 25 | 8 bar3.210 bar2.613 bar2.2 | 79 | DN25 | 1513 × 620 × 959 | 390 kg |
| CZ-VANE-A22 | 22 | 30 | 8 bar3.710 bar3.213 bar2.5 | 79 | DN25 | 1583 × 620 × 959 | 405 kg |
| CZ-VANE-A30 | 30 | 40 | 8 bar5.610 bar4.6513 bar3.66 | 80 | DN40 | 1808 × 829 × 1176 | 640 kg |
| CZ-VANE-A37 | 37 | 50 | 8 bar6.810 bar5.6613 bar4.7 | 80 | DN32 | 1900 × 829 × 1176 | 740 kg |
| CZ-VANE-A45 | 45 | 60 | 8 bar8.2510 bar713 bar5.83 | 82 | DN40 | 1907 × 829 × 1176 | 810 kg |
| CZ-VANE-A55 | 55 | 75 | 8 bar10.510 bar8.913 bar7 | 82 | DN50 | 2032 × 907 × 1176 | 840 kg |
Flows, pressures, noise levels and dimensions recorded model by model on the catalogue sheets. Flows given at 8 bar.
The rotary vane compressor runs slowly, on a single rotor: that is what gives it its longevity and its tolerance to repeated starts. From 4 to 55 kW, it covers the same flows as the small screw.
On a variable load, the drive version of the same family does better; on a steady load, this base range is the simplest.
A rotary vane compressor compresses air with a single rotor mounted off-centre in a cylindrical stator. Vanes slide in the rotor slots and, through centrifugal force, stay pressed against the wall: they form cells whose volume decreases as the rotor turns, compressing the air progressively and smoothly.
The rotor turns slowly (about 1,450-1,480 rpm), directly coupled to the motor. The injected oil lubricates, seals the gap between vanes and stator, and carries away the heat. No axial thrust acts on the rotor: no thrust bearing and no wear of the end faces, and the vanes adjust themselves without loss of performance, even after tens of thousands of hours.
The A series is the standard, fixed-speed version: the motor runs at a constant speed, controlled by load / off-load. It is the core of the rotary vane range, the best balance of robustness and price for a stable air demand.
Industrial workshops and SMEs with a steady load, wherever the longevity and easy maintenance of rotary vanes are wanted without the extra cost of an acoustic enclosure or a drive: mechanical engineering, metalworking, food processing, MRO. For a noise-sensitive environment, choose the Super Silent version; for variable demand, the VSD version.
A slow rotor, direct drive
A single off-centre rotor, coupled to the motor with no belt or gearbox, sweeps the stator with carbon-graphite vanes: few moving parts, no axial thrust.
Efficiency that does not drop
The vanes slide towards the stator as they wear and keep their seal: efficiency does not degrade with the hours, unlike the clearances that open up in a screw air-end.
Intermittent duty
The vane air-end accepts the frequent stops and restarts of irregular consumption, from the small workshop to stations that run in bursts.
Less than 3 ppm of oil
Injection lubrication and oil separation stated at under 3 ppm at the machine outlet.
Simple maintenance
Few parts, dismantling with standard tools: interventions are short and parts are ordered on the machine's reference.
