Super Silent rotary vane
Super Silent rotary vane compressor: 68 to 76 dB(A) depending on size, 30 mm double-layer acoustic hood, intermittent duty accepted. For workshops where the machine sits close to the workstations.
11 models in the catalogue, flow 0.68 - 11 m³/min, pressure 8 - 13 bar, noise level 68 - 76 dB(A).
How it works ↓
What is a Super Silent rotary vane compressor?

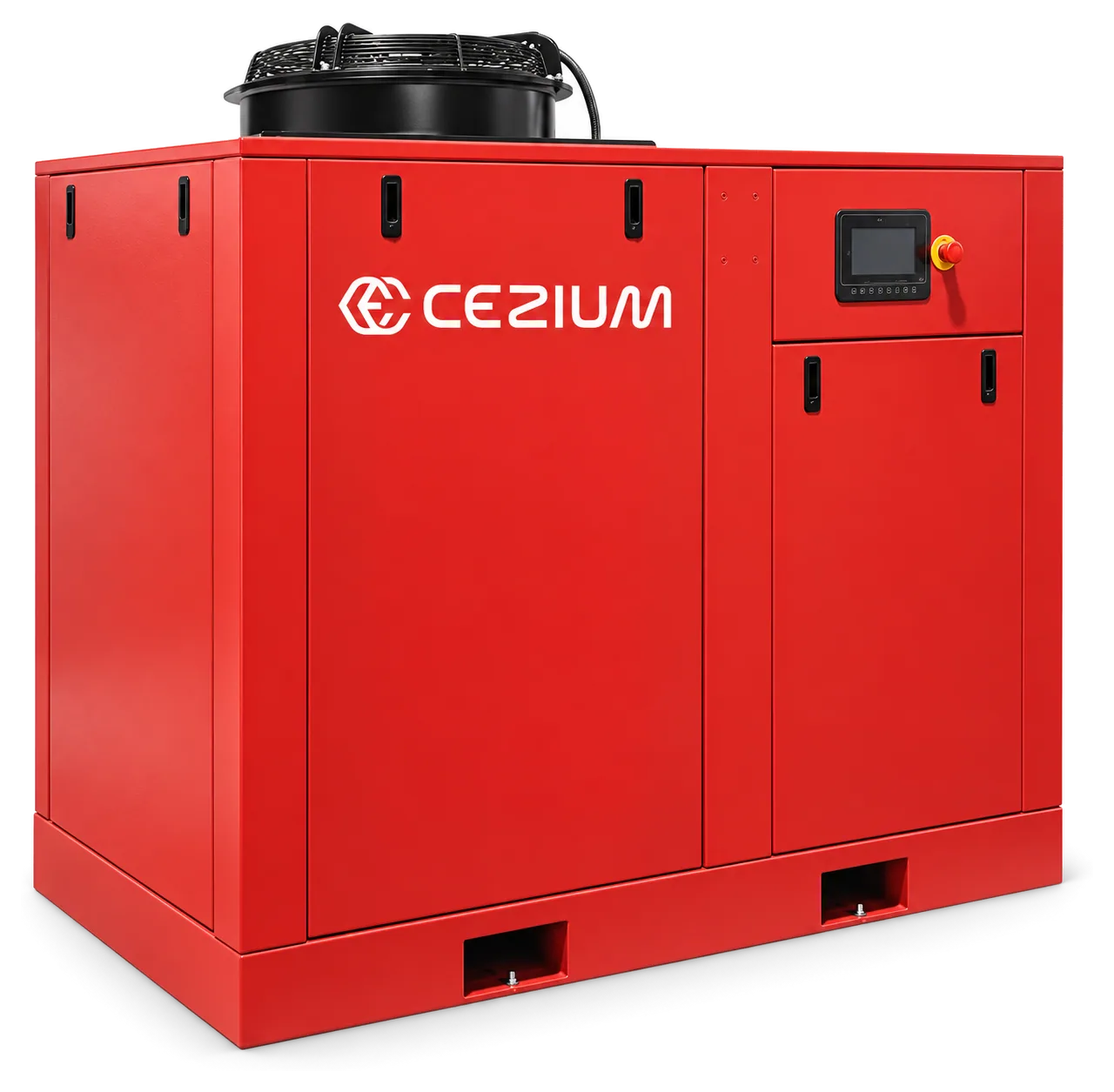

The rotary vane compressor in a 30 mm double-insulated acoustic hood: 68 to 76 dB(A) depending on size. It is the range to choose when the compressor shares the room with people.
Swipe to see the whole drawing
Made for
- Open workshops, print shops, laboratories
- Shops, hospitals, food production
- A machine placed close to workstations
Not made for
- A separate plant room: the base version, more compactStandard rotary vane
| Reference | kW | HP | Flow by pressure (m³/min) | dB(A) | Outlet | L × W × H (mm) | Weight |
|---|---|---|---|---|---|---|---|
| CZ-VANE-AB4 | 4 | 6 | 8 bar0.6810 bar0.5313 bar0.48 | 68 | DN15 | 1003 × 835 × 516 | 170 kg |
| CZ-VANE-AB5.5 | 5.5 | 8 | 8 bar0.910 bar0.7713 bar0.56 | 68 | DN15 | 1003 × 835 × 516 | 200 kg |
| CZ-VANE-AB75 | 7.5 | 10 | 8 bar1.3910 bar1.1513 bar0.95 | 70 | G3/4" | 1252 × 1053 × 612 | 295 kg |
| CZ-VANE-AB11 | 11 | 15 | 8 bar1.9610 bar1.7113 bar1.33 | 70 | DN20 | 1252 × 1053 × 612 | 330 kg |
| CZ-VANE-AB15 | 15 | 20 | 8 bar2.710 bar2.213 bar1.8 | 72 | DN25 | 1500 × 620 × 1130 | 500 kg |
| CZ-VANE-AB185 | 18.5 | 25 | 8 bar3.210 bar2.613 bar2.2 | 72 | DN25 | 1500 × 620 × 1130 | 540 kg |
| CZ-VANE-AB22 | 22 | 30 | 8 bar3.710 bar3.213 bar2.5 | 72 | DN25 | 1500 × 620 × 1130 | 600 kg |
| CZ-VANE-AB30 | 30 | 40 | 8 bar5.610 bar4.6513 bar3.66 | 74 | DN50 | 1750 × 1050 × 1370 | 810 kg |
| CZ-VANE-AB37 | 37 | 50 | 8 bar6.810 bar5.6613 bar4.7 | 76 | DN50 | 1750 × 1050 × 1370 | 900 kg |
| CZ-VANE-AB45 | 45 | 60 | 8 bar8.2510 bar713 bar5.83 | 76 | DN50 | 1750 × 1050 × 1370 | 975 kg |
| CZ-VANE-AB55 | 55 | 75 | 8 bar10.510 bar8.913 bar7 | 76 | DN50 | 1750 × 1050 × 1370 | 1,020 kg |
Flows, pressures, noise levels and dimensions recorded model by model on the catalogue sheets. Flows given at 8 bar.
The rotary vane in its acoustic enclosure, from 4 to 55 kW: the range to choose when the compressor lives in the same room as people, an open workshop, a laboratory, a shop. The noise level is measured on every model and appears in the table.
For the same flow it takes more room than the base version, and that is the price of silence.
A rotary vane compressor uses a single rotor, mounted off-centre in a cylindrical stator. Vanes slide in slots in the rotor and, through centrifugal force, come into contact with the stator wall, forming cells whose volume decreases as the rotor turns: the air is compressed progressively.
The rotor turns slowly (about 1,450 rpm), directly coupled to the motor, bathed in the oil that lubricates, seals and cools. This mechanical simplicity (a single rotating element, no jolts) explains the very low noise level and the exceptional service life.
Noise-sensitive environments and continuous operation: open-plan workshops, print shops, food processing, hospitals, sites where the compressor is close to the workstations. Ideal for very frequent starts and 24/7 service.
From 68 to 76 dB(A)
30 mm acoustic hood with double-layer insulation: 68 dB(A) on the small sizes, 76 dB(A) on the largest. The machine can be installed close to workstations.
A direct-drive rotor at 1,450 rpm
Single rotor driven at motor speed, with no gearbox or belt. Carbon-graphite vanes in an off-centre stator.
Efficiency that does not drop
The vanes slide towards the stator as they wear and keep their seal: efficiency does not degrade with the hours.
25 L oil reservoir
Oil system with a 25-litre reservoir and a visible level: checking takes a glance.
Intermittent duty
The vane air-end accepts the frequent stops and restarts of irregular consumption.
