Tank-mounted rotary vane

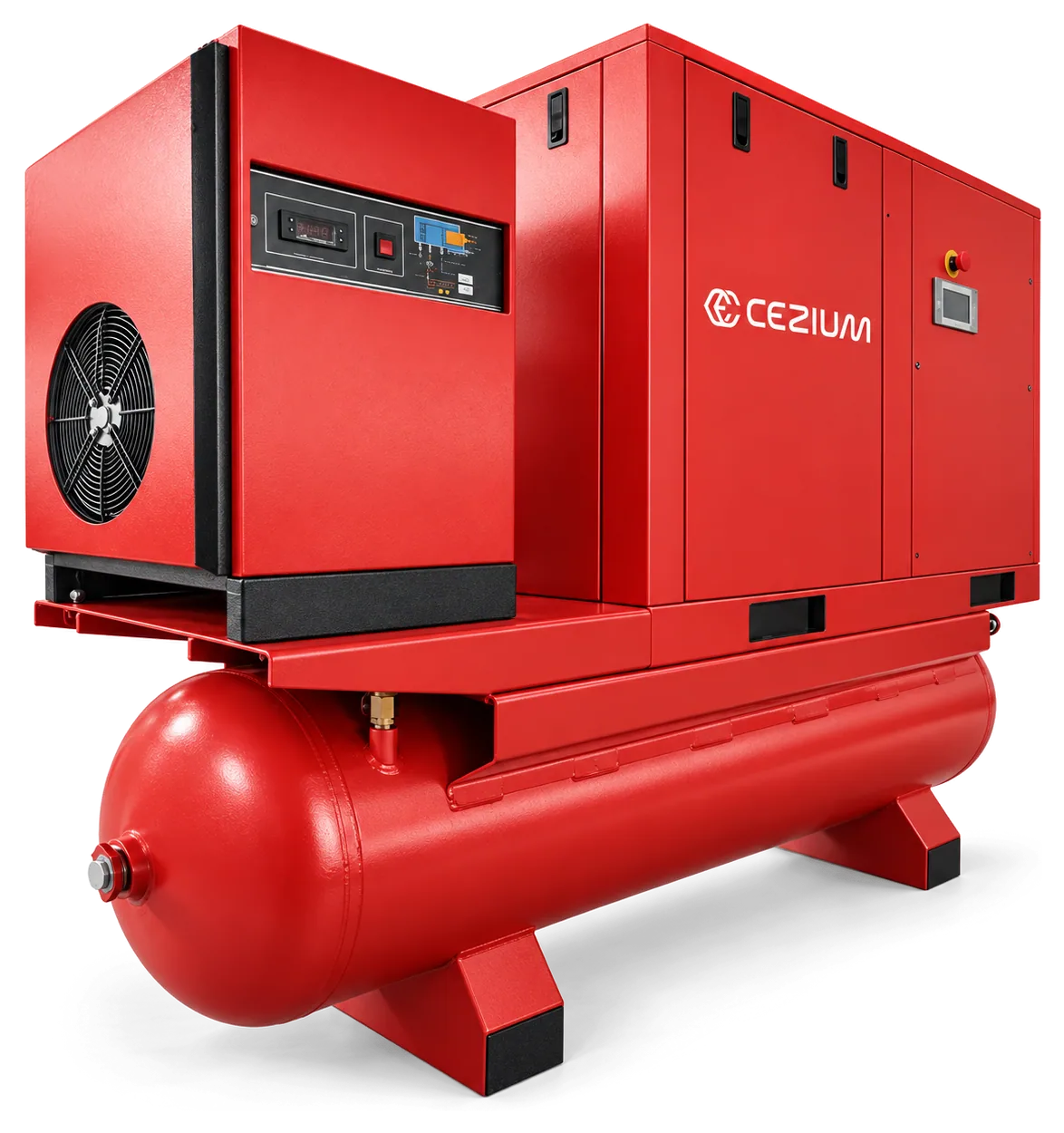

Rotary vane compressor on a 200/400 L tank - ready-to-use all-in-one for the workshop. Stabilised pressure, immediate commissioning, vane longevity.
4 models in the catalogue, flow 0.68 - 1.96 m³/min, pressure 8 - 13 bar, noise level 72 - 76 dB(A).
How it works ↓
What is a tank-mounted rotary vane compressor?
The vane air-end mounted on its 200 or 400 litre receiver: the workshop set that you put down, plug in and start. The receiver smooths out flow peaks and avoids bursts of starts.
Swipe to see the whole drawing
Made for
- Body shops, garages, joinery
- Trades and small production lines
- A complete air source with no installation to design
Not made for
- Dried air without adding a dryer3-in-1 integrated rotary vane
- A vehicleOnboard compressor
| Reference | kW | HP | Flow by pressure (m³/min) | dB(A) | Outlet | L × W × H (mm) | Weight |
|---|---|---|---|---|---|---|---|
| CZ-VANE-ASM4 | 4 | 6 | 8 bar0.6810 bar0.5313 bar0.48 | 72 | DN15 | 1051 × 416 × 706 | 115 kg |
| CZ-VANE-ASM5.5 | 5.5 | 8 | 8 bar0.910 bar0.7713 bar0.56 | 72 | DN15 | 1021 × 435 × 721 | 125 kg |
| CZ-VANE-ASM7.5 | 7.5 | 10 | 8 bar1.3910 bar1.1513 bar0.95 | 76 | DN20 | 1202 × 513 × 827 | 210 kg |
| CZ-VANE-ASM11 | 11 | 15 | 8 bar1.9610 bar1.7113 bar1.33 | 76 | DN20 | 1281 × 538 × 850 | 250 kg |
Flows, pressures, noise levels and dimensions recorded model by model on the catalogue sheets. Flows given at 8 bar.
The rotary vane compressor mounted on its receiver, from 4 to 11 kW: the workshop unit that is set down, plugged in and started. The receiver smooths the flow demands and avoids bursts of starts.
For a higher flow or an integrated dryer, see the 3-in-1 version of the family; for on-board use, the onboard version.
The ASM series takes the standard vane air-end of the A series and mounts it at the factory on an air receiver (200 or 400 L depending on power). Compressor, motor and receiver form a single unit, pre-assembled and tested.
The buffer receiver stabilises pressure, absorbs variations in demand and reduces the frequency of starts: less wear, less consumption. The unit arrives ready to use: connect the air and the electricity, and production starts.
Workshops, SMEs and craftspeople who want a complete compressed air source without designing an installation: bodywork, mechanical work, joinery, small production lines. Small footprint, immediate commissioning, rotary vane longevity.
All-in-one on an air receiver
Vane air-end + 200/400 L receiver, pre-assembled and tested: a single machine to set down and connect.
Stabilised pressure
The buffer receiver smooths the pressure and reduces the compressor's on/off cycles: less wear and less energy.
Ready to use
Delivered factory-tested: no installation study or piping to design, quick commissioning.
Rotary vane longevity
Vanes that keep their seal as they wear, intermittent duty accepted, maintenance with standard tools.
